Brochure of the NightSHADE evo LB 985N In Vivo Plant Imaging System
EN | PDF | 884.6 KB

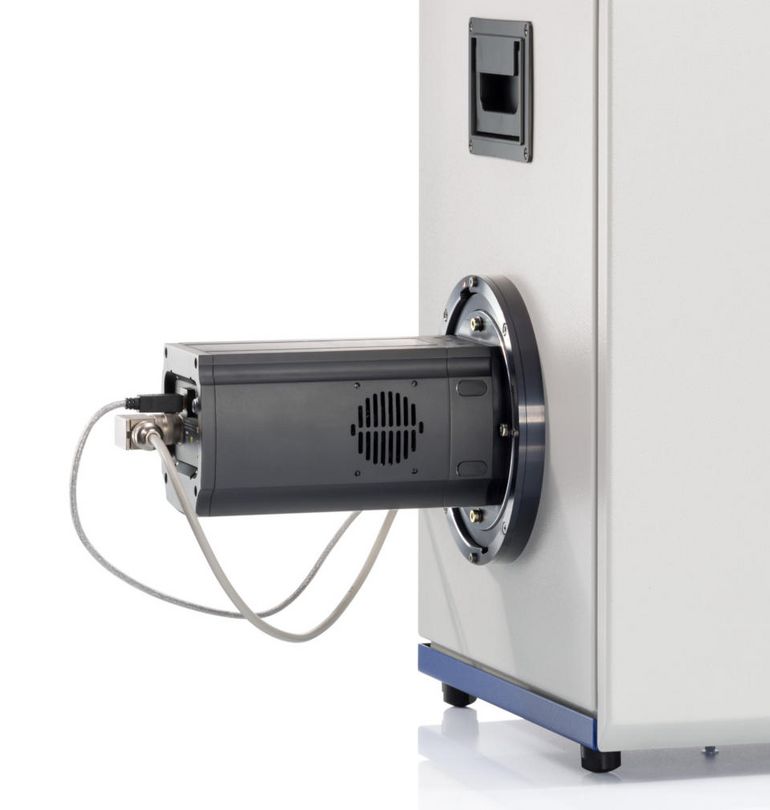

即可下载NightSHADE evo使用超灵敏的背照式(背光)CCD相机,在整个可见光到近红外光谱范围内具有很高的量子效率。 有效冷却-100°C可确保最低的背景和最高的灵敏度,以延长曝光时间。 相机可以安装在仪器的顶部,从上方拍摄图像,也可以安装在侧面以获取侧视图像,从而使幼苗能够保持自然垂直向上。
NightSHADE evo有助于为您的实验创建标准化的环境。
NightSHADE evo 提供光密性暗箱,您可以根据实验需要进行设置:
用户友好的IndiGO™软件控制仪器并使图像处理变得简单。 它提供以下创新功能:
其他功能:可选的21 CRF part 11合规性。
相机类型 | 背光,中带涂层全帧芯片,1024 × 1024像素,慢扫描模式 | |
---|---|---|
像素大小 | 13 x 13µm | |
光谱范围 | 350-1050 nm | |
量子效率 | 在620纳米时为90% | |
像素整合 | 增加灵敏度,最高16x16 | |
曝光时间 | 从毫秒到数小时 | |
CCD冷却 | 电制冷至-70℃ |
尺寸 | 25毫米,f 0.95, C-接口, 最有效的光收集。 |
---|---|
视野范围 | 标准镜头:270 x 270毫米 微距镜头:130 x 130毫米 |
光源类型 | 75w卤素灯 |
---|---|
光谱范围 | 340-750 nm |
内部尺寸 | 520 x 400 x 360(宽x高x深) |
---|---|
连接 | 光密端口的法兰,侧视图安装包和LED面板安装架,软件控制的电源插座。 |
电源 | 110-240 V, 50/60 Hz;max 400 VA;最少4个空闲插座 |
---|---|
温度范围 | 最大30°C |
湿度 | 10 - 80%,无凝结 |
工作台 | 承重至少45kg(仪器重量);最小尺寸为900 x 600毫米(宽x深),加上电脑空间 |
软件 | IndiGO™软件用于仪器控制和数据分析 |
---|
接口 | USB 3.0 |
---|---|
规定 | CE、EN |
尺寸(宽×深×高) | 600 x 400 x 920 mm |
体重 | 45公斤 |
Brochure of the NightSHADE evo LB 985N In Vivo Plant Imaging System
EN | PDF | 884.6 KB
即可下载Improve your plant imaging skills and tackle common challenges with this expert…
EN | PDF | 2.7 MB
即可下载Improved experimental setup for analysis of circadian rhythms using the…
PDF | 410.3 KB
即可下载In this application note, imaging of delayed fluorescence and of ultra-weak…
EN | PDF | 458.7 KB
即可下载In this application note, the ability of the NightSHADE evo In Vivo Plant…
EN | PDF | 567.9 KB
即可下载In this application note we test the imaging of delayed fluorescence with the…
EN | PDF | 448.8 KB
即可下载In this application note, imaging of the prompt fluorescence of a transgenic…
EN | PDF | 501.0 KB
即可下载This application note describes how the NightSHADE In Vivo Plant Imaging System…
EN | PDF | 394.7 KB
即可下载User Manual of the NightSHADE evo In Vivo Plant Imaging System
EN | PDF | 6.1 MB
即可下载Brochure of the NightSHADE evo LB 985N In Vivo Plant Imaging System
EN | PDF | 884.6 KB
即可下载Improve your plant imaging skills and tackle common challenges with this expert…
EN | PDF | 2.7 MB
即可下载Improved experimental setup for analysis of circadian rhythms using the…
PDF | 410.3 KB
即可下载In this application note, imaging of delayed fluorescence and of ultra-weak…
EN | PDF | 458.7 KB
即可下载In this application note, the ability of the NightSHADE evo In Vivo Plant…
EN | PDF | 567.9 KB
即可下载In this application note we test the imaging of delayed fluorescence with the…
EN | PDF | 448.8 KB
即可下载In this application note, imaging of the prompt fluorescence of a transgenic…
EN | PDF | 501.0 KB
即可下载This application note describes how the NightSHADE In Vivo Plant Imaging System…
EN | PDF | 394.7 KB
即可下载User Manual of the NightSHADE evo In Vivo Plant Imaging System
EN | PDF | 6.1 MB
即可下载在科学文献中,有很多使用NightShade植物体内成像系统的文章。在这里,你可以选择最近的一些论文。
Year | Authors | Journal | Title |
---|---|---|---|
2022 | Yan-Mei Wu, Yu-Jiao Ma, Min Wang, Huan Zhou, Zhi-Meng Gan, Ren-Fang Zeng, Li-Xia Ye, Jing-Jing Zhou, Jin-Zhi Zhang, and Chun-Gen Hu | Horticulture Research | |
2022 | Chen Hao, Yanzhi Yang, Jianmei Du, Xing Wang Deng, and Lei Li | PNAS | The PCY-SAG14 phytocyanin module regulated by PIFs and miR408 promotes dark-induced leaf senescence in Arabidopsis |
2021 | Baiqiang Yan, Zongju Yang, Guanhua He, Yexing Jing, Huixue Dong, Lan Ju, Yunwei Zhang, Yingfang Zhu, Yun Zhou, and Jiaqiang Sun | Plant Communications | |
2021 | Hong Zhao, Yanzhai Song, Junhui Li, Yue Zhang, Huaqiu Huang, Qun Li, Yu’e Zhang, and Yongbiao Xue | The New Phytologist | |
2021 | Yeting Sun, Xiaoyan Zhao, Xiulan Xu, Yue Ma, Hongyang Guan, Hao Liang, and Dan Wang | Scientific Reports | |
2020 | Laura Medina-Puche, Huang Tan, Vivek Dogra, Mengshi Wu, Tabata Rosas-Diaz, Liping Wang, Xue Ding, Dan Zhang, Xing Fu, Chanhong Kim, and Rosa Lozano-Duran | Cell | A Defense Pathway Linking Plasma Membrane and Chloroplasts and Co-opted by Pathogens |
2020 | Ildikó Jócsák, Isaac Malgwi, Gyula Rabnecz, Anita Szegő, Éva Varga-Visi,György Végvári*, Zsolt Pónya | PLoS One | |
2020 | Jian Li, William Terzaghi, Yanyan Gong, Congran Li, Jun-Jie Ling, Yangyang Fan, Nanxun Qin, Xinqi Gong, Danmeng Zhu & Xing Wang Deng | Nature Communications | Modulation of BIN2 kinase activity by HY5 controls hypocotyl elongation in the light |
2019 | Keqin Chen, Mengru Song, Yunna Guo, Lifu Liu, Hao Xue, Hongyan Dai, and Zhihong Zhang | Plant Biotechnology Journal | |
2019 | Huixue Dong, Suli Yan, Jie Liu, Pan Liu and Jiaqiang Sun | Plant Biotechnology Journal | TaCOLD1 defines a new regulator of plant height in bread wheat |
2019 | Heshan Du, Changlong Wen, Xiaofen Zhang, Xiulan Xu, Jingjing Yang, Bin Chen * and Sansheng Geng * | International Journal of Molecular Sciences | |
2019 | Yexing Jing, Jie Liu, Pan Liu, Dongfeng Ming & Jiaqiang Sun | Scientific Reports | |
2019 | Yuan Lin, Fanli Meng, Chao Fang, Bo Zhu and Jiming Jiang | Plant Methods | Rapid validation of transcriptional enhancers using agrobacterium‑mediated transient assay |
2018 | Louise F. Thatcher, Rhonda Foley, Hayley J. Casarotto, Ling-Ling Gao, Lars G. Kamphuis, Su Melser & Karam B. Singh | Scientific Reports | |
2017 | Francesco Pini, Alison K. East, Corinne Appia-Ayme, Jakub Tomek, Ramakrishnan Karunakaran, Marcela Mendoza-Suárez, Anne Edwards, Jason J. Terpolilli, Joshua Roworth, J. Allan Downie, Philip S. Poole | Plant Physiology | Bacterial Biosensors for in Vivo Spatiotemporal Mapping of Root Secretion |
您可以在出版物数据库中找到更多使用过NightShade的出版物。
请记住,所提供的清单并不详尽,但它提供了用我们的仪器进行的并在同行评议的杂志上发表的实验的宝贵例子。
